Refrigeration

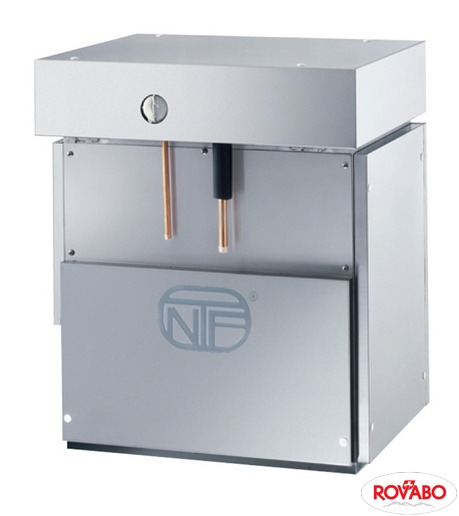

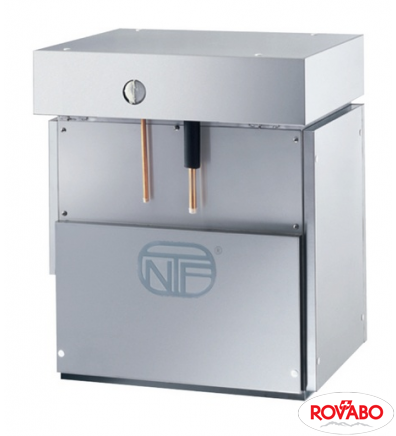

Modular ice maker, AISI 304 stainless steel, scotch brite. Subcooled flakes (from -5°C to -10°C). Low consumption (1 liter water / 1 kg ice). Evaporator anticorodal alloy made, with rotating knife. Cleanable antiscale filter. Easy cleaning thanks to rounded surfaces. FDA approved. ABS plastic components. Conformity to RoHS directive. Automatic water charge. Standard and special voltages. Model in Tropical Class +43°C. 1 m3 = 430 kg of ice. Usable bins: Bin 1200DD, DRB 1100, DRB 2500. Working conditions: indoor location, ambient temperature - +10 - +43°C, water temperature - +3 - +32°C, voltage - -10% - +10%, water inlet pressure - 1-6 bar. Electrical connection: 123-204 mm. Refrigerant feeding pipe. Outlet pipe of gaseous refrigerant. Production in 24h: 900 kg. Refrigerant: R404A - R507 - R448A - R449A - R407F - R452A, capacity - 5 kW (evap. temp. -23°C).
